PVS-14C*

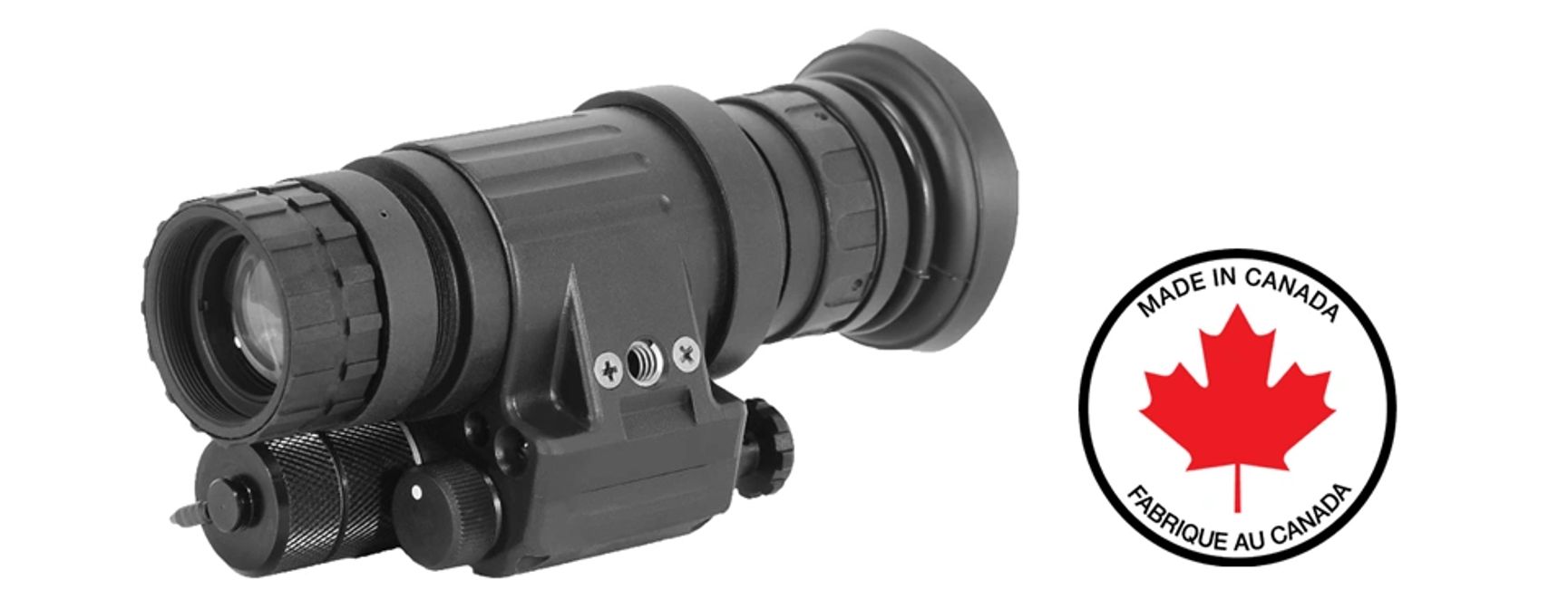

PVS-14C
The PVS-14C is a highly useful tool in the field of night vision.
At 1 X magnification it will enable the user to negotiate the terrain safely.
A significant benefit for surveillance, is that it will allow the observer to see through glass, unlike thermal imaging.
Therefore observations can be made from inside a vehicle through the windscreen or from inside a closed building window. (With a slight reduction in performance).
Note. Batteries can be inserted independently of polarity, making them easier to change quickly at night if required.
3 X & 5 X extension lenses are available.
Autogating (option) prevents damage to the tube from strong bright lights while still allowing the device to provide a serviceable image while the bright light persists.
Note. PVS-14 is a "Generic" designation, do not assume that every PVS-14 unit available in the market place is the same.
PVS-14C Gen3 "GA3" $5730 US + AU GST FOM 1800 +
# PV-0908A60
Autogating GA2 & GA3 $ 300 US + AU GST
Manual gain control depending on tube availability.
Price & specifications can change without notice.
PVS-14C Gen 3 GA3
Magnification 1X
Lens (mm) 26
FOV (deg) 40
Focus (cm) 25 - inf
Dioptre adj. +2 / -6
Gain control Opt
Light overload. Yes
Waterproof IP66
Illuminator Yes
Weight (g) 250
Power AA 1 or CR123 Battery life (hrs) 40+
Dimensions (mm) 110x65x55

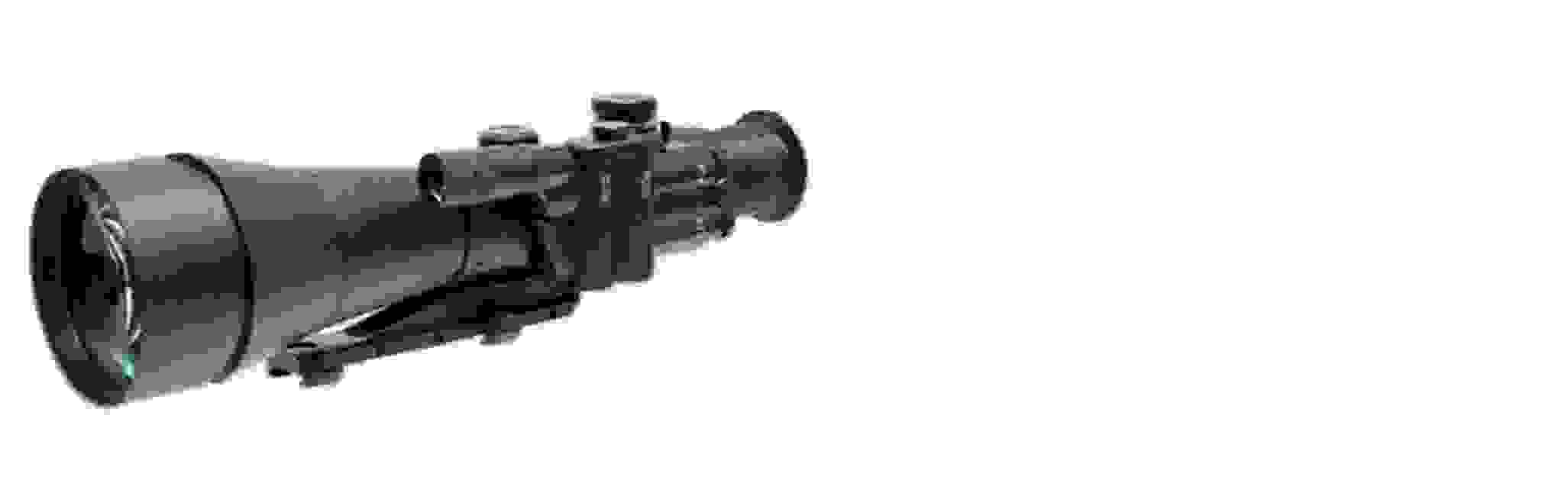

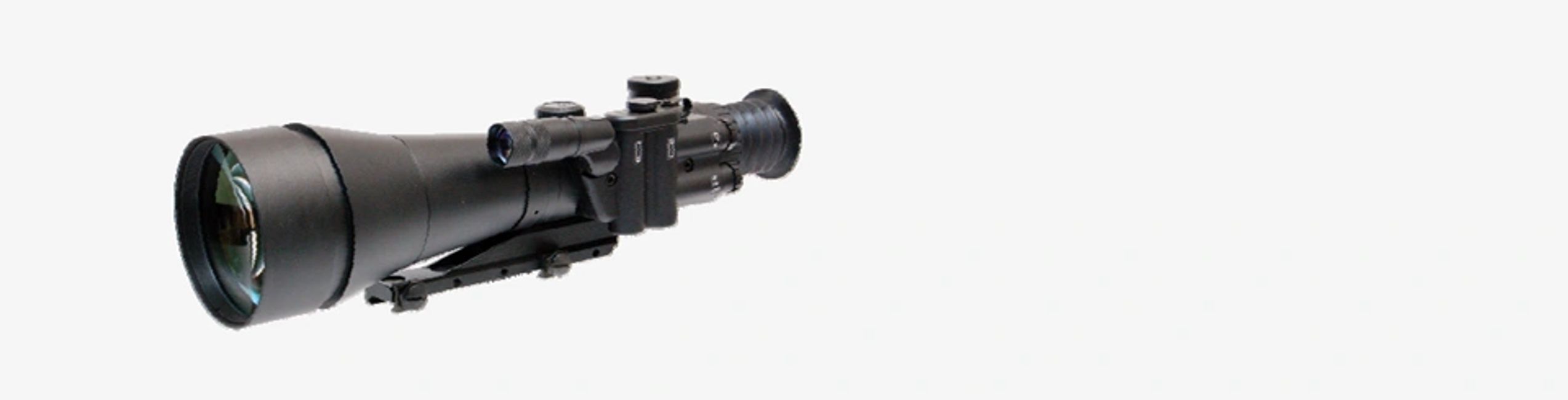

GS - 26R
Additional Information
This Image Intensifying sight has the best compromise of magnification and lens speed (lens diameter [F number]) for optimal performance of any available sight. Lens diameter becomes the limiting factor when trying to obtain maximum magnification.
Australian Shooting Services recommends no less than Generation 3 "GA3" for optimum performance.
(See night vision information pages).
GS-26R Gen 3 "GA3" $7680 US + Au GST
# GS-0688B28
Prices & specifications can change without notice
GS-26R Gen 3 GA3
Magnification 6X
FOM 1800+
FOV (deg) 7
Focus (m) 20 - inf
Dioptre +2 / -6
Built in IR Yes
Weight (g) 1100
Batteries lithium 2 AA
Battery life (Hrs) 50+
Man Gain Opt
Dimensions (mm) 290x100x85
