PULSAR THERMAL IMAGING

Please note.

All PULSAR thermal scopes are on hold at this time.

Pulsar are in the process of discontinuing their 12 micron items and will be introducing new models. These will be announced as they become available here in Australia.

For the present time disregard the models and information below until further notice. We apologize for any inconvenience.

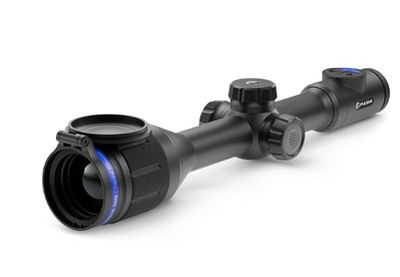

THERMION XM 50

This scope is of exceptional value where a fully professional grade scope is not warranted.


PULSAR THERMION XM 50 is now available.

but will only be available in limited numbers for a time!



Basic specifications


 320 X 240 FPA   12 um

Optical mag.         5.5 X

   Detection range   2300 m

 Refresh rate         50 Hz

   Warranty             3 years



XM 50

$5000 AU + GST

# TH13425E0


Enquire for full details and specials


Prices & specifications can change without notice

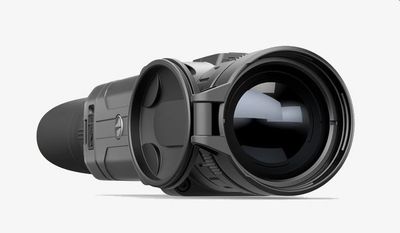

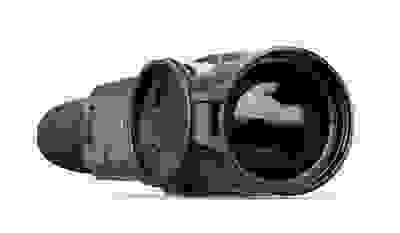

PULSAR HELION THERMAL

Recommended. HELION XQ 50 *

The Pulsar Helion XQ 50 provides a stunning option for observation purposes in all situations.

A great item for property security. Useful for farmers, security

personnel etc. to observe who, or what is moving about, while not

being detected themselves.


DISCONTINUED. NEW MODEL COMING SOON.


Basic specifications


384 X 288 FPA    17um

Optical mag.          4.1 X

Detection range     1800 m

Refresh rate          50 Hz

Warranty              3 years

Inbuilt recording, video & still images.




$4500 AU + GST

 # P3070F5


Enquire for full details and ask about special deals.


Price & specification can change without notice.

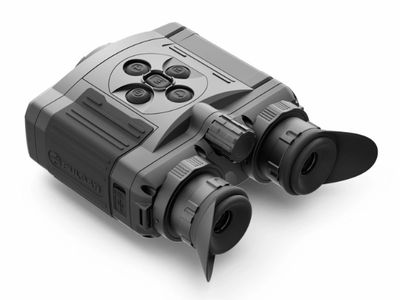

PULSAR ACCOLADE XP 50 *

The Pulsar ACCOLADE presents a new way to look at things.

While the optical magnification is somewhat less than the HELION XQ50, I can recommend this unit for having the benefit of using both eyes, which allows extended viewing time without eye strain.

For a number of situations, for instance when operating on foot, where you might need to move quickly, a monocular may still be preferable, as after viewing even for a short time, it takes a minute or so before your normal vision returns.

By only using one eye the other eye can still see your immediate surroundings instantly, rather than having to wait until both eyes recover to the dark conditions.


Basic specifications


640 X 480 FPA     17um

Optical Mag.           2.5 X

Detection               1800 m

Refresh rate           50 Hz

Warranty               3 years

Inbuilt recording, video and still images


Enquire for full details and ask about any special deals..


$6819 AU + GST

 # P3093L4


Price and specification can change without notice

Find out more >>

PULSAR AXION

AXION - XM38

The new Pulsar Axion XM 38 is the best choice for general observation and has the best detection range of this range of monoculars.

Coupled with a 5.5 X optical magnification, will provide reliable identification of your target.

                                                 For more info, CLICK on IMAGE.



 Basic specifications


5.5 X             Optical.

Up to             4 X zoom.

1700 m.         Detection range.

320 x 240      12 micron FPA.

Refresh rate   50Hz.


Inbuilt video & still images.


       $3628 AU + GST

            #P3097L8


Price and specifications can change without notice.






FAQ about THERMAL

The most frequently asked questions would have to be  ---


(Q).  "Why does the small FPA, eg 384 X 288, produce a larger optical magnification than the one using a 640 X 480 FPA?


(A).  This is difficult to explain in text, but the small FPA effectively produces a narrower field of view because both size FPA units must be positioned at the focus point (Not the focal length) in the thermal item in question. Therefore the 384 x 288 FPA is only receiving portion of the overall light (heat) entering the lens, compared with the 640 x 480 FPA, which means the small FPA will have the "wanted target" covering a larger portion of it's overall image. Which is then interpolated onto the OLED screen for viewing.

This also applies in the same way to the smaller 12 micron sensors.


                                     ..................................................


(Q).  Won't the actual "wanted target" within the image contain less pixels with the small FPA than the larger FPA?


(A).  No, the "wanted target" within the image contains the SAME number of pixels with either FPA. It is just the overall image that contains less, due to it's narrower field of view. There may be, depending on the internal software, a slight loss of image quality  when the smaller overall image is interpolated to the OLED viewing screen.

In practical terms the narrower field of view produced by the smaller FPA does NOT restrict it's usefulness.


                                        .................................................


(Q).  Why do they produce the larger FPA then, if the small FPA gives better results, and at the same time it will cost about $2000 less?


(A).  Your guess is as good as mine. A lot of people are not aware of the real situation and believe the more expensive unit with more pixels will be so much better, therefore why would a manufacturer not produce them if they sell?


                                         .................................................


(Q).  How far can I see?


(A).   This is stated in the spec list as detection. You need to understand what that really means, it is detecting a target of a specific size, generally a "man". This figure is calculated using the "Johnston Criteria" which depends on a number of factors which will alter the result. For example, 50% or 90% probability of what you are "seeing".

When the effect of smoke, fog, humidity etc. is involved, the quoted distances will be considerably altered.

More information can be found in the "Night Vision Information" pages.
